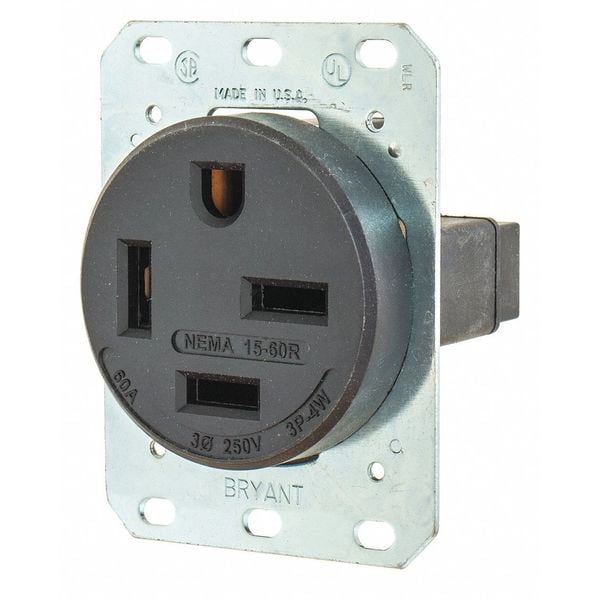

Receptáculo, 60 amperios, 250V AC, montaje empotrado, toma sencilla, 15-60R, negro.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 15-60R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Power Indicator | No |
| Amps | 60 |
| Color | Black |
| Wiring Method | Back |
| Material | Thermoplastic Polymer |
| HP | 10 HP |
| Voltage | 250VAC |
| Outlet Type | Single |
| Amps - Plugs and Receptacles | 60 |
| Mounting Type | Flush |
| Sub-Category | Single Receptacles |
| Standards | CSA Certified, UL Listed |
| Weather Resistant | No |
| Corrosion Resistant | No |
| Phase | Three |
| Number of Gangs | 1 |
| Height | 2.12 in |
| Width | 2-1/4 in |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Polarized | Yes |
| Mount Hole Center-to-Center Height | 2-1/2 in |
| Receptacle Type | Single |
| Face Plate Width | 2.3 in |
| Grade | General Use |
| Includes Mounting Hardware | Yes |
| Resistance Properties | Impact Resistant |
| NEMA Receptacle Configuration | 15-60R |
| Overall Depth | 2.1 in |
| Voltage Rating | 250V AC |
| Housing Material | Thermoplastic |
| Flange Width | Not Applicable |
| GFCI | No |
| Surge Protection | No |
| Connection Orientation | Straight |
| Flange Diameter | Not Applicable |
| Wire Connection Type | Screw Terminals |
| Horsepower Rating | 10 HP |
| Housing Color | Black |
| For Location | Indoor |
| AFCI | No |
| Grounding | Grounded |
| Current Rating | 60 A |
| Mount Hole Center-to-Center Width | 1.8 in |
| Market | Industrial |
| Maximum Wire Size | 6 AWG |
| Includes | Mounting Hardware |
| Face Plate Height | 3.7 in |
| Flange Height | Not Applicable |
| Mount Type | Flush |
| Current / Amperage Rating | 60 A |
| Type | Single Receptacle |
| Style | Smooth Face |
| Amperage Rating | 60 A |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Pressure Terminal Screws |
| Item Type | Single |
| Application | Industrial Grade |
| Wattage | 12480 |
| Series | Heavy Duty |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #6 AWG |
| Display Size | Standard Sized Product |
| Nema Rating | 15-60R |
| Voltage Rating Description | Three Phase 250 VAC |
| Length | 3.68 in |
| Package Quantity | 1 |
