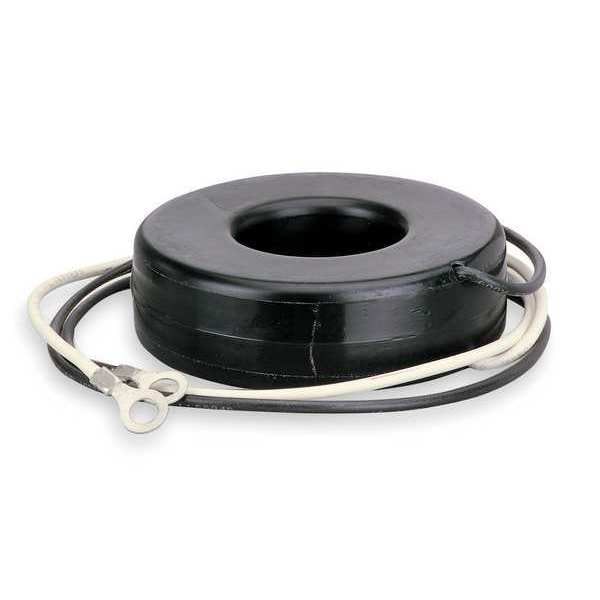

Solid Core Current Transformer, 0 to 50A, 0 to 5A, 3 ft 7 in 16 AWG Leads
| Item - Transformer | Solid Core Current Transformer |
|---|---|
| Primary Range | 0 to 50 A |
| Secondary Range | 0 to 5 A |
| Hole Dia. - Current Transformer | 1.18 in |
| Electrical Connection - Current Transformer | 3 ft 7 in 16 AWG Leads |
| Window | Round |
| Overall Depth | 1.97 in |
| For Use With | Panel Meters |
| Item | Solid Core Current Transformer |
| Outside Dia. | 2.87 in |
| Overall Width | 1.58 in |
| Overall Height | 3.52 in |
| Standards | cRUus Components Recognized |
| Includes | Not Applicable |
| Transformer Type | Solid Core |
| Window Shape | Round |
| Window Width | Not Applicable |
| Wire Lead Length | 3.6 ft |
| Manufacturers Warranty Length | 1 yr |
| Window Height | Not Applicable |
| Secondary Current - Maximum | 5 A |
| Primary Current - Maximum | 50 A |
| Connection | Wire Lead |
| Operating Temperature - Maximum | 104 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Window Diameter | 1.18 in |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
