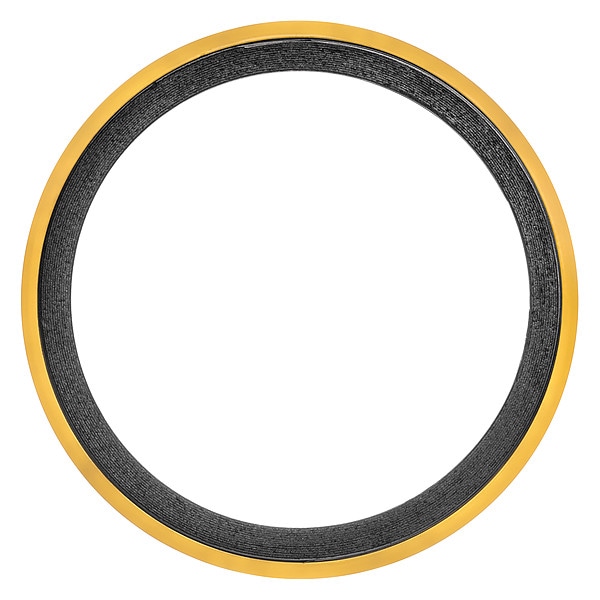

Spiral Wound Gasket with Graphite Filler, 3", 1/8" Thick, No 1500
| Pipe Size | 3 in |
|---|---|
| Outside Dia. | 6-7/8 in |
| Inside Dia. | 3-5/8 in |
| Bolt Holes | 0 |
| Thickness | 3/16 in |
| Material of Construction | 304 Stainless Steel |
| Flange Class | Class 1500 |
| Color | Metallic |
| Item | Spiral Wound Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21 |
| Type | Spiral Wound |
| Temp. Range (F) | -300 Degrees to 1200 Degrees |
| For Piping System | Food and Beverage |
| Market | Industrial |
| For Flange ANSI Class | 1,500 |
| Filler Material | Graphite |
| Spiral Winding Material | Stainless Steel |
| Outer Ring Material | Carbon Steel |
| Inner Ring Stainless Steel Grade | Not Applicable |
| Spiral Winding Stainless Steel Grade | 304 |
| For Environment | Beverage, Food |
| For Pipe Size | 3 in |
| System of Measurement | Inch |
| Minimum Operating Temperature | -300 deg F |
| Features | Exceptional Structural Strength |
| Inside Diameter | 3-5/8 in |
| Resistance Properties | Chemical-Resistant |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
