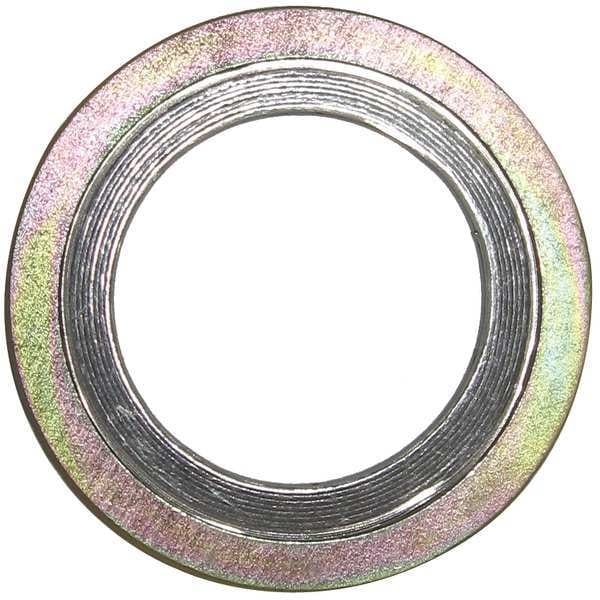

Spiral Wound Metal Gasket, 1 in., 11/64 in
| Item | Spiral Wound Flange Gasket |
|---|---|
| Pipe Size | 1 in |
| Outside Dia. | 2-5/8 in |
| Inside Dia. | 1-1/4 in |
| Metal Detectable | No |
| Material of Construction | 304SS and Flexible Graphite with Carbon Steel Outer Ring |
| Thickness | 3/16 in |
| Standards | ASME B16.20, ASME/ANSI Pressure Class-150 LB |
| Winding | 304SS with Flexible Graphite |
| Continuous Max. Temp. (F) | 842 deg F |
| Includes | Carbon Steel Centering Ring |
| Type | Ring Gasket |
| Color | Gray Stripe, Yellow Edge |
| Temp. Range (F) | -320 to 842 |
| Flange Class | Class 150 |
| For Flange ANSI Class | 150 |
| FDA Approved | No |
| Inner Ring Stainless Steel Grade | Not Applicable |
| Rim Stripe Color | Gray |
| Outside Rim Color | Yellow |
| Spiral Winding Material | Stainless Steel |
| Inner Ring Material | None |
| Outer Ring Material | Carbon Steel |
| Spiral Winding Stainless Steel Grade | 304 |
| Filler Material | Graphite |
| Inside Diameter | 1-1/4 in |
| System of Measurement | Inch |
| Maximum Operating Temperature | 842 deg F |
| Minimum Operating Temperature | -320 deg F |
| For Pipe Size | 1 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
