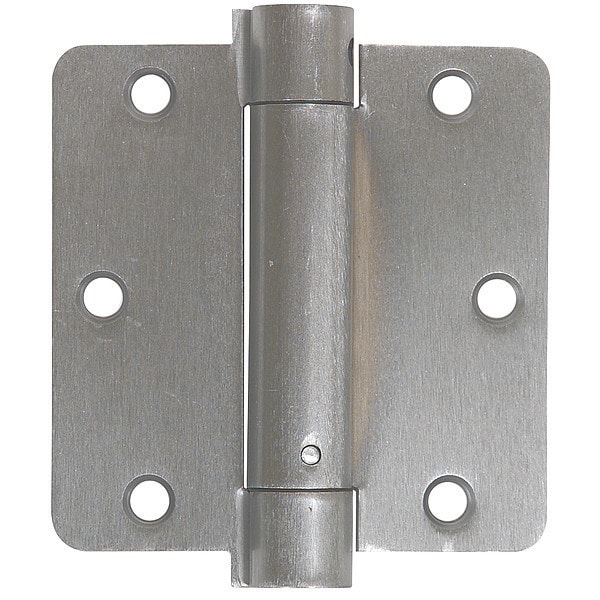

Spring Hinge, Steel, Full Mortise Mounting, 1 3/4 in Leaf W x 3 1/2 in Leaf H, Satin Chrome
| Corners | Round |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.099 in |
| Door Leaf Width | 1-3/4 in |
| Finish | Satin Chrome |
| Holes per Leaf | 3 |
| Load Capacity | 75 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 270 deg |
| Features | Non Removable Pin Type |
| Frame Leaf Height | 3-1/2 in |
| Item | Spring Hinge |
| Hardware | Yes |
| Frame Leaf Width | 1-3/4 in |
| Pin Type | Nonremovable |
| Bearing Type | Plain |
| Ligature Resistant | No |
| Pin Material | Steel |
| Holes | With |
| Frame Leaf Thickness | 0.099 in |
| UL Fire Rating | Not Applicable |
| Overall Width | 3-1/2 in |
| Standards | Not Applicable |
| Overall Knuckle Height | Not Applicable |
| Hand Orientation | Non-Handed |
| Mounting Style | Full Mortise |
| Removable Pin | No |
| Corner Radius | 1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Corner Type | Round |
| Fire Rating | Not Applicable |
| Resistance Properties | Corrosion-Resistant |
| Number of Holes per Leaf | 3 |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| Pin Diameter | 7/64 in |
| Range of Motion - Maximum | 270 deg |
| Door Thickness - Maximum | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
