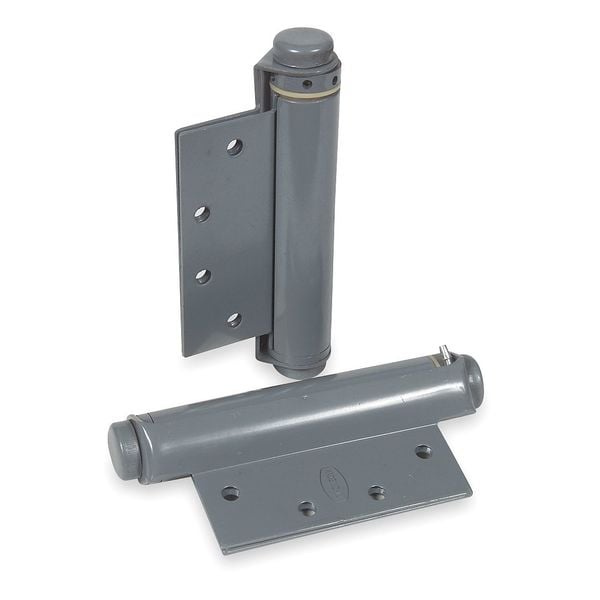

Spring Hinge, Steel, Full Mortise Mounting, 2 in Leaf W x 4 1/2 in Leaf H, Gray Enamel
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.098 in |
| Door Leaf Width | 2 in |
| Finish | Gray Enamel |
| Holes per Leaf | 4 |
| Load Capacity | Not Applicable |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Features | Non Removable Pin Type |
| Frame Leaf Height | 4-1/2 in |
| Holes | With |
| Pin Type | Nonremovable |
| Pin Material | Steel |
| Bearing Type | Plain |
| Frame Leaf Width | 2 in |
| Overall Knuckle Height | Not Applicable |
| Frame Leaf Thickness | 0.098 in |
| Item | Spring Hinge |
| Hardware | Yes |
| Ligature Resistant | No |
| Overall Width | 5 in |
| UL Fire Rating | Not Applicable |
| Standards | Not Applicable |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Pin Diameter | 1/8 in |
| ANSI/BHMA Finish | Aluminum Painted |
| Corner Type | Square |
| Fire Rating | Not Applicable |
| Removable Pin | No |
| Resistance Properties | Corrosion-Resistant |
| Range of Motion - Maximum | 180 deg |
| Number of Holes per Leaf | 4 |
| Door Thickness - Minimum | 2 in |
| Mounting Style | Full Mortise |
| Corner Radius | Not Applicable |
| Door Thickness - Maximum | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
