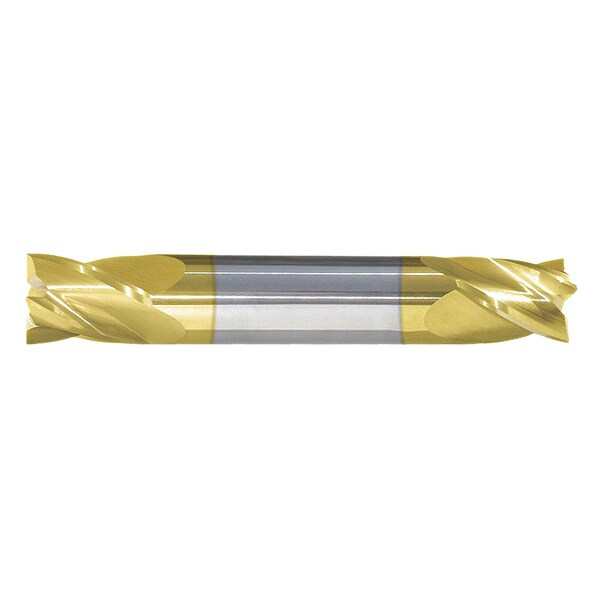

Sq. End Mill, Double End, Carb, 1/2
| Milling Diameter | 1/2 in |
|---|---|
| Number of Flutes | 4 |
| Length of Cut | 5/8 in |
| Single End/Double End | Double End |
| Grade | C2 Micro Grain |
| Shank Dia. | 1/2 in |
| Overall Length | 3 in |
| Corner Radius | 0 in |
| Material Applications | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Item | Square End Mill |
| Measurement System | Fractional Inch |
| End Mill Application | Finishing, Roughing |
| Milling Dia. | 1/2 in |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | TiN |
| Neck Length | 0 in |
| Spiral Direction | Right Hand |
| Shank Type - Machining | Straight |
| Secondary Material Application | General Purpose |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| List Number | 236 |
| Number of Coolant Holes | 0 |
| Helix Angle | 30 deg |
| Primary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Neck Dia. | 0 in |
| Chamfer Width | 0.001 in |
| Drilling Tool Configuration | Individual |
| End Mill Style | Square |
| Coolant Fed | Non-Coolant Through |
| Material - Machining | Carbide |
| Finish | TiN |
| Primary Material Application ISO Code | P, K, M, H |
| Chip-Breaker | No |
| Package Quantity | 1 |
