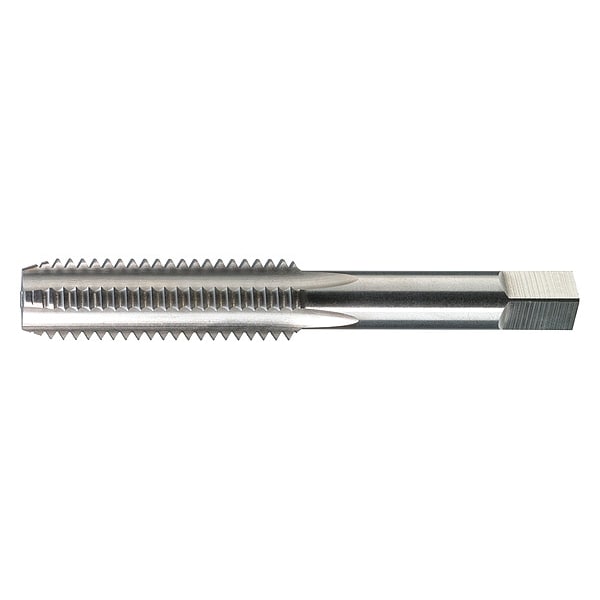

Straight Flute Hand Tap, 1-1/4"-12, Bottoming, 6 Flutes, UNF
| Item | Straight Flute Hand Tap |
|---|---|
| Tap Thread Size | 1-1/4"-12 |
| Tap Chamfer | Bottoming |
| Number of Flutes | 6 |
| Tap Thread Type | UNF |
| Tap Grouping | Tap |
| Pitch Diameter Limit | Not Rated |
| Tap Size | 1-1/4" |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| List Number | 17081 |
| Tap Material | High Speed Steel |
| Tap Style | Straight Flute |
| Overall Length | 5-3/4 in |
| Thread Length | 2-9/16 in |
| Shank Dia. | 1.021" |
| Number of Pieces | 1 |
| Standards | USCTI |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Size | 1-1/4" |
| Series | 17081 |
| Thread Standard | UNF |
| Square Size | 0.766 in |
| Tap Shank Standard | USCTI |
| Shank Type - Machining | Straight |
| Shank Length | 3-3/16 in |
| Thread Size | 1 1/4"-12 |
| Threads per Inch | 12 |
| Measurement System | Fractional Inch |
| Tap Length Standard | USCTI |
| Class of Fit | 2 B |
| Spiral Direction | Neutral |
| Thread Limit | H6 |
| Extended Neck | Yes |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
