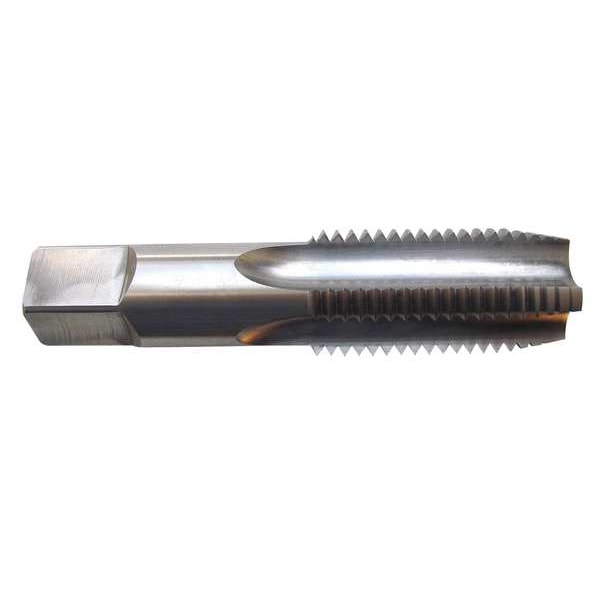

Straight Flute Hand Tap, Taper, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 9.32 mm |
| Tap Material | High Speed Steel |
| Tap Chamfer | Taper |
| Tap Size | M12 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Metric |
| Number of Flutes | 4 |
| Overall Length | 86 mm |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Pitch Diameter Limit | D5 |
| Tap Thread Type | Metric |
| Number of Pieces | 1 |
| Tap Grouping | Tap |
| Tap Thread Size | M12-1.00 |
| Thread Length | 42 mm |
| Tap Finish | Bright |
| List Number | Common Specials |
| Cutting Direction - Machining | Right Hand |
| Series | Common Special |
| Thread Size | M12x1 |
| Thread Pitch | 1 mm |
| 65% Thread Drill Size | 7/16 in |
| 55% Thread Drill Size | 11.25 mm |
| Measurement System | Metric |
| Tap Shank Standard | ANSI |
| Extended Neck | Yes |
| Thread Standard | Metric Fine |
| Spiral Direction | Neutral |
| Tap Length Standard | ANSI |
| Shank Type - Machining | Straight |
| Thread Limit | D5 |
| 75% Thread Drill Size | 11 mm |
| Shank Length | 44 mm |
| Helix Angle | 0 Degrees |
| Size | M12 |
| Package Quantity | 1 |
