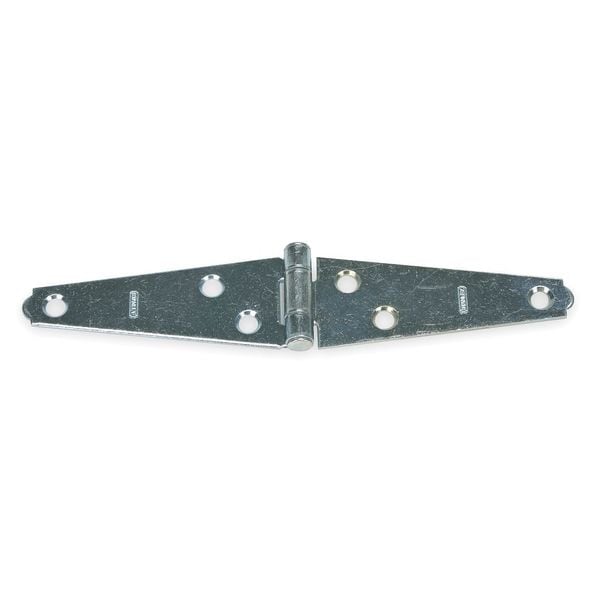

Strap Hinge, Steel, Full Surface Mounting, 3 in Leaf W x 1 3/16 in Leaf H, zinc plated
| Corners | Round |
|---|---|
| Door Leaf Height | 1-1/8 in |
| Door Leaf Thickness | 0.056 in |
| Door Leaf Width | 3 in |
| Finish | zinc plated |
| Holes per Leaf | 3 |
| Load Capacity | Not Applicable |
| Material | Steel |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Range of Motion | 270 deg |
| Features | Non Removable Pin Type |
| Frame Leaf Height | 1-3/16 in |
| Frame Leaf Thickness | 0.056 in |
| Ligature Resistant | No |
| Hardware | Yes |
| Frame Leaf Width | 3 in |
| Pin Material | Steel |
| Holes | With |
| Item | Strap Hinge |
| Bearing Type | Plain |
| Pin Type | Nonremovable |
| Hole Size | 0.21 in |
| Overall Knuckle Height | Not Applicable |
| Overall Width | 6 in |
| Resistance Properties | Corrosion-Resistant |
| Includes Hardware | Hardware Included |
| Pin Diameter | Not Applicable |
| Includes Holes | Holes Included |
| Door Thickness - Maximum | Not Applicable |
| Mounting Style | Full Surface |
| Corner Type | Round |
| ANSI/BHMA Finish | Zinc-Plated |
| Number of Holes per Leaf | 3 |
| Door Thickness - Minimum | Not Applicable |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
