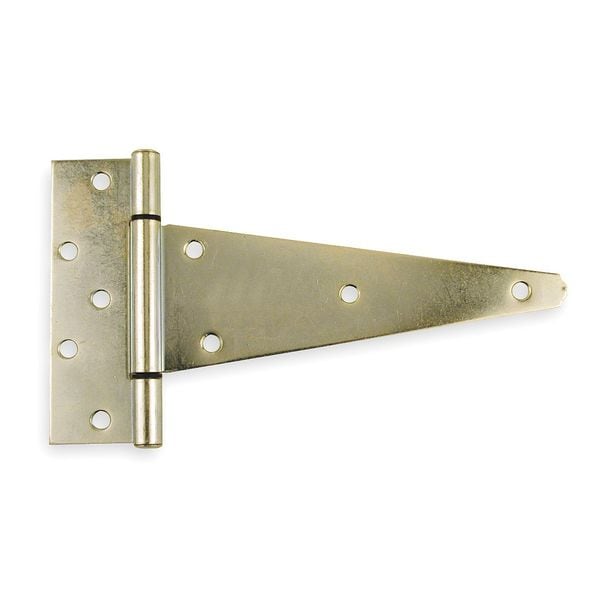

Tee Hinge, Steel, 2 1/4 in Leaf W x 5 1/2 in Leaf H, zinc plated
| Item | Tee Hinge |
|---|---|
| Material | Steel |
| Finish | zinc plated |
| Load Capacity | Not Applicable |
| Range of Motion | 270 Degrees |
| Ligature Resistant | No |
| Holes per Leaf | 4 |
| Frame Leaf Width | 2-1/4 in |
| Frame Leaf Height | 5-1/2 in |
| Frame Leaf Thickness | 0.112 in |
| Door Leaf Width | 2-3/4 in |
| Door Leaf Height | 8 in |
| Door Leaf Thickness | 0.112 in |
| Hardware | Included |
| Pin Type | Nonremovable |
| Corners | Round |
| Holes | With |
| Orientation | Non Handed |
| Mounting | Full Surface |
| Bearing Type | Plain |
| Features | Non Removable Pin Type; Hinge with Wider Leaves and Larger Pin Diameter Provide Extra Strength and Support |
| Hole Size | 0.32 in |
| Pin Material | Steel |
| Overall Width | 10-1/4 in |
| Overall Knuckle Height | Not Applicable |
| Number of Holes per Leaf | 4 |
| ANSI/BHMA Finish | Zinc-Plated |
| Includes Holes | Holes Included |
| Includes Hardware | Hardware Included |
| Pin Diameter | Not Applicable |
| Corner Type | Rounded |
| Resistance Properties | Corrosion-Resistant |
| Mounting Style | Full Surface |
| Door Thickness - Maximum | Not Applicable |
| Range of Motion - Maximum | 270 Degrees |
| Door Thickness - Minimum | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
