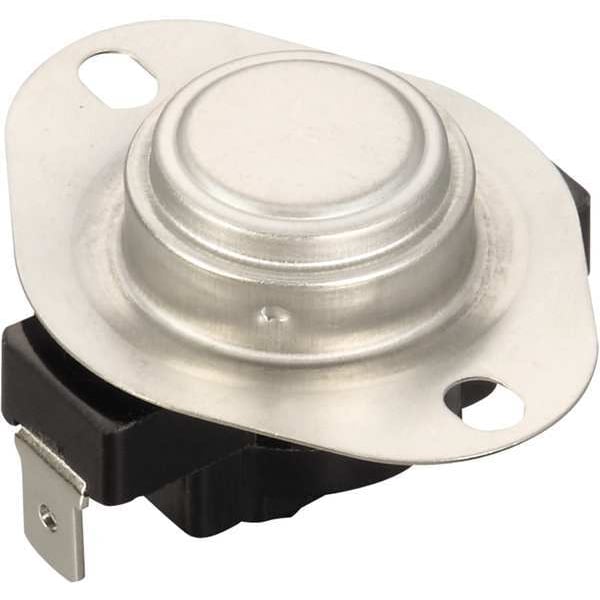

Temperature Limit Controller, Open on Rise, SPST, Auto Reset, 225F Open to 185F Close
| Item | Temperature Limit Controller |
|---|---|
| Temp. Range (F) | 185 to 225 |
| Type | Limit, Automatic Reset |
| Switch Type | SPST |
| Depth (In.) | 1-1/2 |
| Width (In.) | 2-3/4 |
| Height (In.) | 1 |
| Switch Closes @ (F) | 185 Degrees F |
| Switch Opens @ (F) | 225 Degrees F |
| Voltage Range | 120 to 240 |
| Resistive Amps @ 120V | 25 A |
| Resistive Rating 240V | 25 |
| Pilot Duty Contacts (VA) | 480 |
| Inductive Amps @ 240V | 10 A |
| Inductive Amps @ 120V | 14 A |
| Differential | 40 |
| Circuit #1 Switch Closes @ (F) | 185 Degrees F |
| Circuit #1 Switch Opens @ (F) | 225 Degrees F |
| Switch Action | Open on Rise |
| Contact Rating (DC) | Not Applicable |
| Temperature Differential | 40 deg F |
| Series | Not Applicable |
| Resistive Amps @ 277V AC | 25 A |
| Resistive Amps @ 208V AC | Not Applicable |
| Temperature Settings | Not Applicable |
| IP Rating | Not Rated |
| Mounting Base Width | 1-5/8 in |
| Overall Width | 2-3/4 in |
| Standards | cULus Recognized |
| Weight | 0.7 oz |
| Switch Closing Temperature | 185 deg F |
| Contact Rating (AC) | Not Applicable |
| Wire Connections | Spade Terminals |
| Reset Type | Automatic Reset |
| Resistive Amps @ 240V AC | 25 A |
| Switch Opening Temperature | 225 deg F |
| Overall Height | 1 in |
| Terminal Size | 1/4 in |
| Pilot Contact Rating | 480 VA |
| Maximum Current Rating | Not Applicable |
| Mounting Base Length | 2 in |
| Input Voltage | 120V AC, 240V AC |
| Electrical Connection Type | Not Applicable |
| Application | Limit Control |
| Mounting | Surface Mount |
| Product Type | Temperature Limit Controller |
| Number of Mounting Holes | 2 |
| Face Diameter | 2 in |
| Maximum Control Temperature | Not Applicable |
| Mounting Hole Diameter | 1/8 in |
| Switch Starting Action | Not Applicable |
| Overall Depth | 1-1/2 in |
| Minimum Control Temperature | Not Applicable |
| Contact Form | SPST |
| Resistive Amps @ 120V AC | 25 A |
| Mounting Hole Center to Center Distance | 1 5/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
