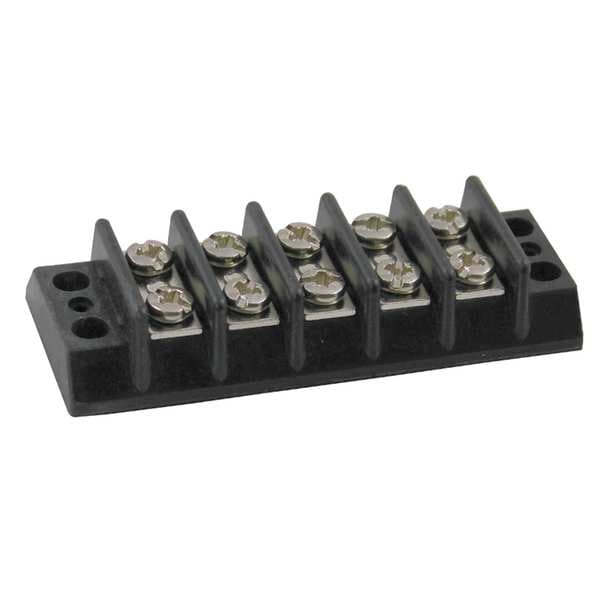

Barra de terminales, 20A, 5 polos, 300VCA
| Item | Terminal Strip |
|---|---|
| Amps | 20 |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 22 AWG |
| Voltage | 300 V |
| Number of Poles | 5 |
| Center Spacing | 7/16 in |
| Width | 1.14 in |
| Material | Phenolic |
| Length | 2.95 in |
| Color | Black |
| Height | 0.59 in |
| Standards | cRUus |
| Temp. Range | -40 to 302 deg F |
| Length (Straight Wireway) | 2.95 in |
| Strip Length | Not Applicable |
| Maximum Voltage | 300 V AC |
| Minimum Operating Temperature | -40 deg F |
| Termination Screw Material | Steel |
| Compatible Manufacturer Model Number | Not Applicable |
| Current | 20 A |
| Termination Screw Size | #6-32 |
| Number of Rows | 2 |
| Pin Depth | Not Applicable |
| Barrier Style | Not Applicable |
| Overall Height | 0.59 in |
| Terminal Material | Copper |
| Overall Length | 3 in |
| Maximum Operating Temperature | 266 deg F |
| Housing Material | Phenolic |
| RoHS Compliant | Yes |
| For Maximum Wire Size | 12 AWG |
| Compatible with Product Type | Power Distribution Blocks |
| Cover Included | No |
| Screw Type | Phil-Slot |
| Includes | Not Applicable |
| Mounting Style | Bolt Down |
| Overall Width | 1.12 in |
| Torque | 9 in-lb |
| UL 94 Flammability Rating | V-0 |
| Housing Color | Black |
| Termination Screw Finish | Nickel Plated |
| For Minimum Wire Size | 22 AWG |
| Pin Length | Not Applicable |
| Termination Style | Screw |
| Pin Width | Not Applicable |
| Package Quantity | 1 |
