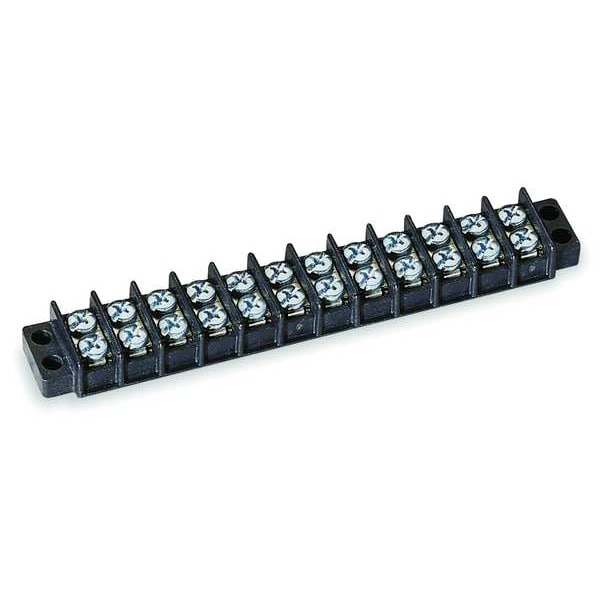

Terminal Strip, 30A, 12 Pole, 600VAC
| Item | Terminal Strip |
|---|---|
| Amps | 30 |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 22 AWG |
| Voltage | 600 V |
| Number of Poles | 12 |
| Center Spacing | 9/16 in |
| Length | 7-3/4 in |
| Color | Black |
| Material | Thermal Plastic |
| Height | 0.83 in |
| Temp. Range | -40 to 266 deg F |
| Width | 1.34 in |
| Standards | cRUus |
| Length (Straight Wireway) | 7-3/4 in |
| Strip Length | Not Applicable |
| Includes | Not Applicable |
| Termination Screw Material | Steel |
| Number of Rows | 2 |
| Maximum Voltage | 600 V AC |
| Overall Length | 7.71 in |
| Pin Depth | Not Applicable |
| Pin Width | Not Applicable |
| Current | 30 A |
| Compatible Manufacturer Model Number | Not Applicable |
| Overall Width | 1.34 in |
| Housing Material | Thermal Plastic |
| Screw Type | Phil-Slot |
| Mounting Style | Bolt Down |
| Termination Screw Finish | Nickel Plated |
| For Maximum Wire Size | 10 AWG |
| Pin Length | Not Applicable |
| For Minimum Wire Size | 22 AWG |
| Termination Style | Screw |
| Minimum Operating Temperature | -76 deg F |
| Barrier Style | Not Applicable |
| UL 94 Flammability Rating | V-0 |
| Overall Height | 0.83 in |
| Terminal Material | Copper |
| Maximum Operating Temperature | 266 deg F |
| Housing Color | Black |
| Termination Screw Size | #8-32 |
| Torque | 12 in-lb |
| RoHS Compliant | Yes |
| Cover Included | No |
| Compatible with Product Type | Power Distribution Blocks |
| Package Quantity | 1 |
