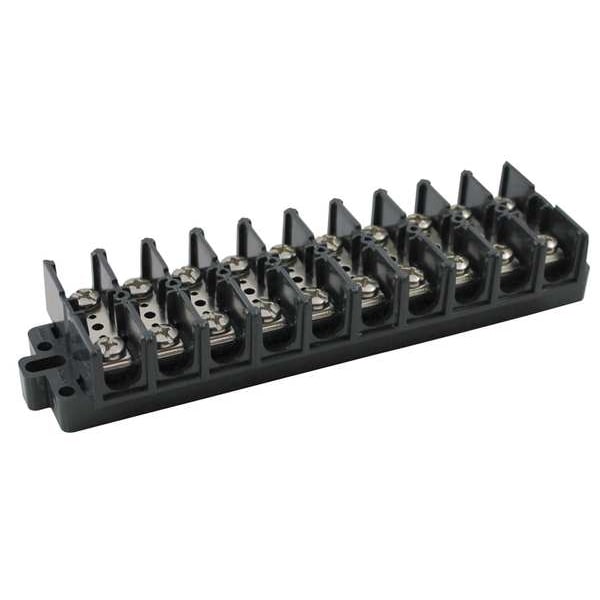

Terminal Strip, 60A, 10 Pole, 600VAC
| Item | Terminal Strip |
|---|---|
| Amps | 60 |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 22 AWG |
| Voltage | 600 V |
| Number of Poles | 10 |
| Center Spacing | 5/8 in |
| Color | Black |
| Standards | cRUus |
| Temp. Range | -40 to 257 deg F |
| Height | 1.22 in |
| Length | 7.48 in |
| Width | 2 in |
| Material | Thermal Plastic |
| Length (Straight Wireway) | 7.48 in |
| Housing Color | Black |
| Compatible Manufacturer Model Number | Not Applicable |
| For Minimum Wire Size | 22 AWG |
| Cover Included | No |
| Maximum Operating Temperature | 221 deg F |
| Overall Width | 2.02 in |
| Terminal Material | Copper |
| Includes | Not Applicable |
| Pin Width | Not Applicable |
| RoHS Compliant | Yes |
| Overall Length | 7-1/2 in |
| Strip Length | Not Applicable |
| Termination Style | Screw |
| Overall Height | 1-1/4 in |
| Barrier Style | Not Applicable |
| Maximum Voltage | 600 V AC |
| Mounting Style | Bolt Down |
| For Maximum Wire Size | 6 AWG |
| Screw Type | Phil-Slot |
| Housing Material | Thermal Plastic |
| Termination Screw Finish | Nickel Plated |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | -40 deg F |
| Compatible with Product Type | Power Distribution Blocks |
| Termination Screw Size | #10-32 |
| Torque | 20 in-lb |
| Pin Length | Not Applicable |
| Current | 60 A |
| Pin Depth | Not Applicable |
| Number of Rows | 2 |
| Termination Screw Material | Steel |
| Package Quantity | 1 |
