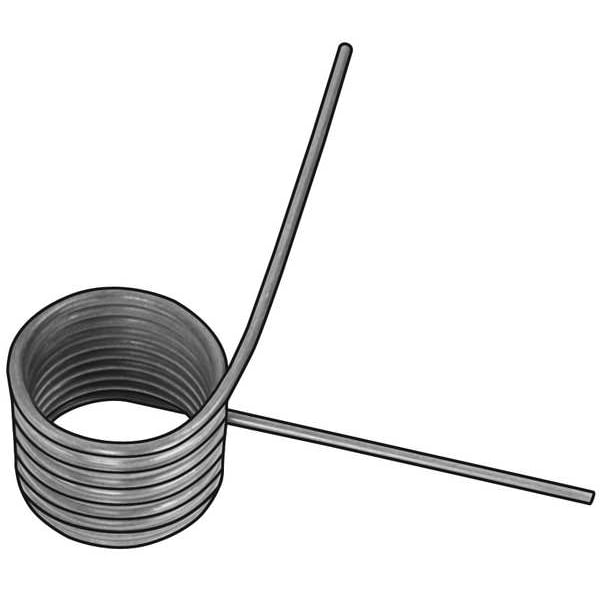

Torsion Spring, 270 Deg, 0.556OD, PK6
| Spring Length @ Torque | 0.394 in |
|---|---|
| Deflection Angle (Deg.) | 270 |
| Leg Length | 2 in |
| Max. Rod Outside Dia. | 0.359 in |
| Wind Direction | Left Hand |
| Wire Dia. | 0.045 in |
| Material | Music Wire |
| Outside Dia. | 0.556 in |
| Torque @ 1/2 Leg Length (In.-Lbs.) | 2.143 |
| Number of Coils | 7.75 |
| Item | Torsion Spring |
| Finish | Plain |
| Package Quantity | 6 |
| Deflection Angle | 270 deg |
| Torque | 0.008 in-lb |
| Wire Diameter | 0.045 in |
| Standards | ASTM A228 |
| Leg Orientation | Tangential |
| System of Measurement | Inch |
| Total Active Coils | 8.58 |
| Outside Diameter | 0.556 in |
| Inside Diameter | 0.359 in |
| Torque @ 1/2 Leg Length | 2.15 in-lb |
| Country of Origin (subject to change) | United States |
