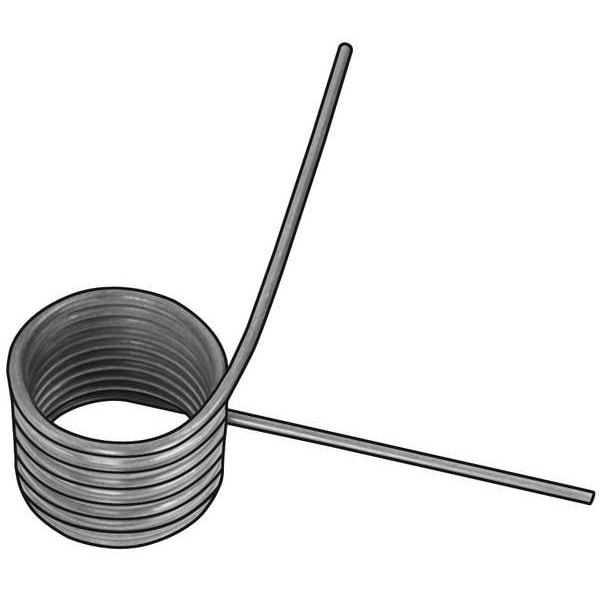

Torsion Spring, 270 Deg, 1.342 OD
| Spring Length @ Torque | 0.925 in |
|---|---|
| Deflection Angle (Deg.) | 270 |
| Leg Length | 3-1/2 in |
| Max. Rod Outside Dia. | 0.891 in |
| Wind Direction | Right Hand |
| Wire Dia. | 0.105 in |
| Material | Music Wire |
| Number of Coils | 7.75 |
| Finish | Plain |
| Package Quantity | 1 |
| Outside Dia. | 1.342 in |
| Item | Torsion Spring |
| Torque @ 1/2 Leg Length (In.-Lbs.) | 22.5 |
| Total Active Coils | 8.35 |
| Leg Orientation | Tangential |
| Torque | 0.1015 in-lb |
| Inside Diameter | 0.891 in |
| System of Measurement | Inch |
| Standards | ASTM A228 |
| Outside Diameter | 1.342 in |
| Wire Diameter | 0.106 in |
| Torque @ 1/2 Leg Length | 27.405 in-lb |
| Deflection Angle | 270 deg |
| Country of Origin (subject to change) | United States |
