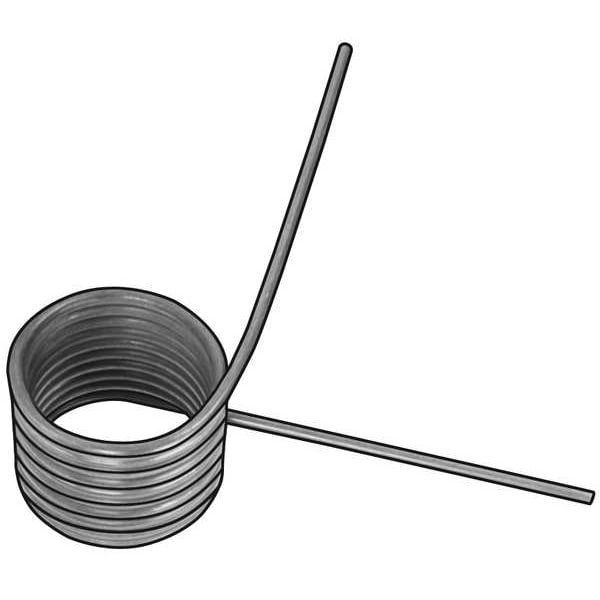

Torsion Spring, 270 Deg, 1.666 OD
| Spring Length @ Torque | 1.453 in |
|---|---|
| Deflection Angle (Deg.) | 270 |
| Leg Length | 4 in |
| Max. Rod Outside Dia. | 1.112 in |
| Wind Direction | Right Hand |
| Wire Dia. | 0.135 in |
| Item | Torsion Spring |
| Material | Music Wire |
| Number of Coils | 9.75 |
| Outside Dia. | 1.666 in |
| Package Quantity | 1 |
| Torque @ 1/2 Leg Length (In.-Lbs.) | 42.86 |
| Finish | Plain |
| Leg Orientation | Tangential |
| Standards | ASTM A228 |
| Deflection Angle | 270 deg |
| Torque @ 1/2 Leg Length | 46.17 in-lb |
| Outside Diameter | 1.666 in |
| System of Measurement | Inch |
| Wire Diameter | 0.135 in |
| Torque | 0.171 in-lb |
| Inside Diameter | 1.112 in |
| Total Active Coils | 10.3 |
| Country of Origin (subject to change) | United States |
