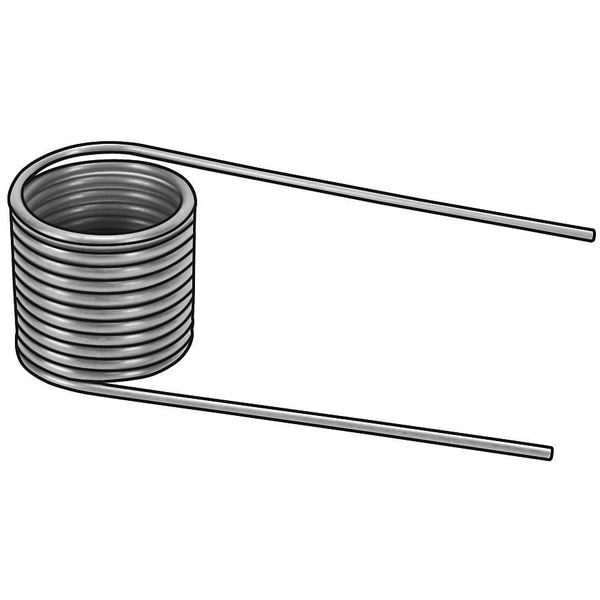

Torsion Spring, 360 Deg, 0.798 OD, Wire Dia.: 0.063 in
| Spring Length @ Torque | 0.789 in |
|---|---|
| Deflection Angle (Deg.) | 360 |
| Leg Length | 2 in |
| Max. Rod Outside Dia. | 0.516 in |
| Wind Direction | Left Hand |
| Wire Dia. | 0.063 in |
| Number of Coils | 11.5 |
| Outside Dia. | 0.798 in |
| Package Quantity | 1 |
| Torque @ 1/2 Leg Length (In.-Lbs.) | 5.52 |
| Material | Music Wire |
| Item | Torsion Spring |
| Finish | Plain |
| Inside Diameter | 0.516 in |
| Deflection Angle | 360 deg |
| Outside Diameter | 0.798 in |
| Wire Diameter | 0.063 in |
| Total Active Coils | 12.08 |
| Standards | ASTM A228 |
| Torque | 0.0153 in-lb |
| Leg Orientation | Tangential |
| System of Measurement | Inch |
| Torque @ 1/2 Leg Length | 5.5 in-lb |
| Country of Origin (subject to change) | United States |
