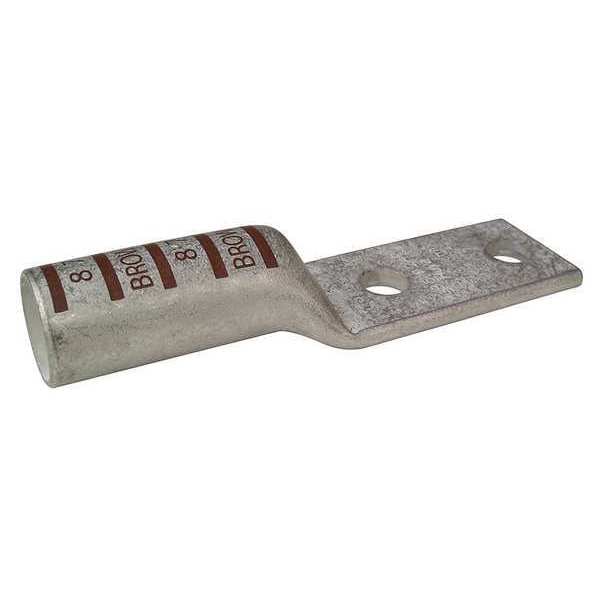

Conector de compresión de ojal de dos orificios, 500 kcmil.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Cable Size | 500 kcmil |
| Connector Type | Straight Barrel |
| Width | 1.61 in |
| Material | Copper |
| Length | 4.89 in |
| Color Code | Brown |
| Standards | UL Listed |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Peep Hole | No |
| Barrel Length | Long |
| Stud Size | 1/4 in |
| Die Code | 87 |
| Hole Center to Center | 0.75 in |
| Hole Center to End | 1/4 in |
| Tongue Style | Standard |
| Item | Two-Hole Lug Compression Connector |
| Length (Straight Wireway) | 4.89 in |
| Tongue Thickness | 0.22 in |
| Barrel Style | Chamfered |
| Tongue Length | 1.94 in |
| Seam Style | Seamless |
| Hole Size | 0.27 in |
| For Wire Type | Stranded |
| For Conductor Material | Copper |
| Overall Width | 1.61 in |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| Strip Length | 2-1/2 in |
| Maximum Operating Temperature | 300 deg F |
| For Stud Size | 1/4 in |
| Termination Style | Crimp |
| Tongue Width | 1.61 in |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| For Wire Size | 500 kcmil |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Overall Length | 4.89 in |
| Inspection Hole | No |
| Barrel Size | Long |
| Maximum Voltage | 600 V AC |
| RoHS Compliant | Yes |
| Current | 620 A |
| Barrel Inside Diameter | 0.88 in |
| Contact Finish | Tin |
| Barrel Outside Diameter | 1.1 in |
| Tongue Angle | Straight |
| Package Quantity | 1 |
