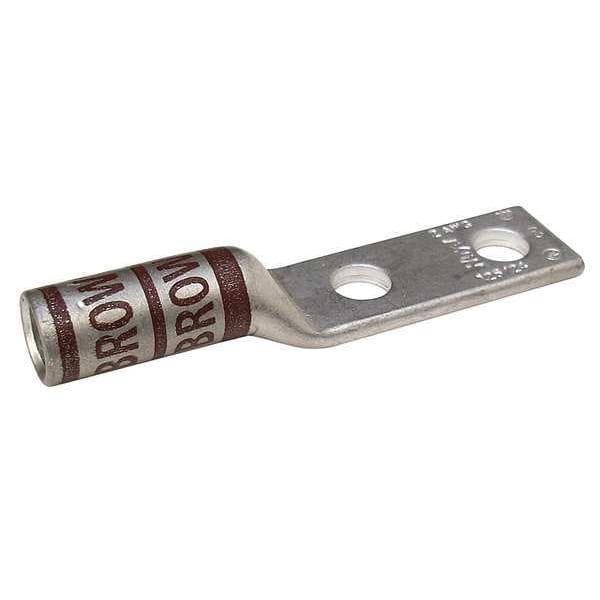

Two Hole Lug Compression Connector, 2 AWG
| Cable Size | 2 AWG |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.6 in |
| Material | Copper |
| Length | 2.58 in |
| Color Code | Brown |
| Tongue Style | Standard |
| Standards | CSA Certified, UL Listed |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Barrel Length | Long |
| Item | Two-Hole Lug Compression Connector |
| Die Code | 33 |
| Hole Center to End | 0.23 in |
| Peep Hole | Yes |
| Hole Center to Center | 0.625 in |
| Stud Size | #10 |
| Length (Straight Wireway) | 2.58 in |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 2 AWG |
| Strip Length | 1-1/4 in |
| Barrel Size | Long |
| Overall Length | 2.58 in |
| RoHS Compliant | Yes |
| Tongue Angle | Straight |
| Termination Style | Crimp |
| Maximum Operating Temperature | 300 deg F |
| Current | 170 A |
| For Wire Type | Stranded |
| Maximum Voltage | 600 V AC |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Tongue Width | 0.6 in |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| For Stud Size | #10 |
| Overall Width | 0.6 in |
| Barrel Inside Diameter | 0.31 in |
| Seam Style | Seamless |
| Barrel Outside Diameter | 0.42 in |
| For Wire Size | 2 AWG |
| Hole Size | 0.205 in |
| Inspection Hole | Yes |
| Barrel Style | Chamfered |
| Tongue Length | 1.17 in |
| Contact Finish | Tin |
| Tongue Thickness | 0.12 in |
| Package Quantity | 1 |
