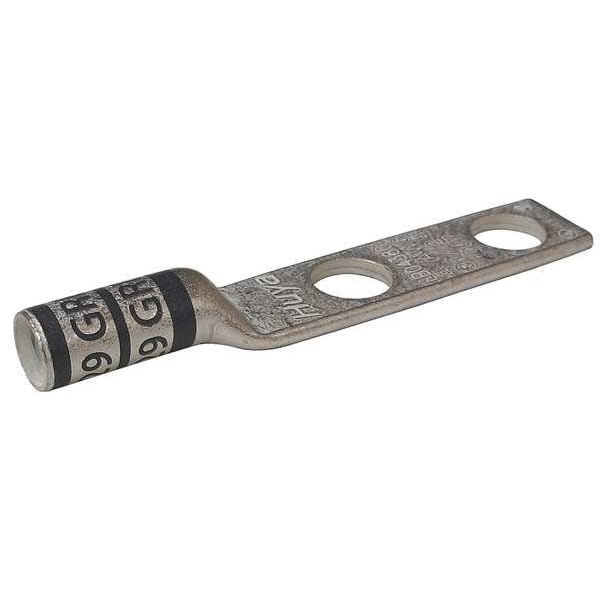

Conector de compresión de doble orificio, calibre 4 AWG.
| Cable Size | 4 AWG |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.59 in |
| Material | Copper |
| Length | 3.03 in |
| Color Code | Gray |
| Barrel Length | Long |
| Hole Center to End | 0.38 in |
| Tongue Style | Standard |
| Stud Size | 3/8 in |
| Hole Center to Center | 1 in |
| Die Code | 29 |
| Peep Hole | No |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Item | Two-Hole Lug Compression Connector |
| Standards | CSA Certified, UL Listed |
| Length (Straight Wireway) | 3.03 in |
| Maximum Voltage | 600 V AC |
| Contact Finish | Tin |
| Tongue Width | 0.59 in |
| Termination Style | Crimp |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Maximum Operating Temperature | 300 deg F |
| For Stud Size | 3/8 in |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Barrel Outside Diameter | 0.37 in |
| RoHS Compliant | Yes |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Strip Length | 7/8 in |
| Current | 125 A |
| Overall Length | 3.03 in |
| Seam Style | Seamless |
| Barrel Style | Chamfered |
| Tongue Length | 1.98 in |
| For Conductor Material | Copper |
| Barrel Size | Long |
| Tongue Angle | Straight |
| Hole Size | 0.405 in |
| Overall Width | 0.59 in |
| For Wire Type | Stranded |
| Tongue Thickness | 0.09 in |
| For Wire Size | 4 AWG |
| Barrel Inside Diameter | 0.27 in |
| Inspection Hole | No |
| Package Quantity | 1 |
