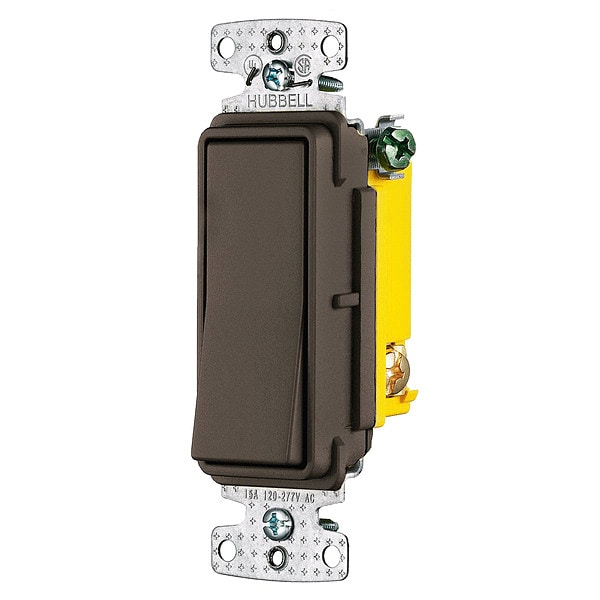

Wall Switch, Brown, 1-Pole Type, 1 to 2 HP
| Item | Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Rocker |
| Amps AC | 15 A |
| Color | Brown |
| Voltage AC | 120 V |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | General Purpose |
| Standards | CSA Certified, UL Listed |
| Antimicrobial | No |
| Rated HP | 1 to 2 |
| Description/Special Features | Thermoplastic Cover/Base |
| Wire Connection Type | Screw Terminals, Push In |
| Features | Smooth, Quiet Rocker, Ultrasonically Welded Cover and Base |
| Grounding | Grounded |
| Overall Width | 1.4 in |
| Overall Height | 1.4 in |
| Number of Switches | 1 |
| Voltage Rating | 120V AC |
| Locking Style | Not Applicable |
| Horsepower Rating | 2 HP |
| Market | Residential |
| Current Rating | 15 A |
| Performance | Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minuteElectrical - Endurance - 30,000 cycles minimumElectrical - Max. working voltage - 120VElectrical - Overload - 1.5 times ratingEnvironmental - Flammability - UL V0Environmental - Operating temperatures - Maximum continuous 60°Cminimum -20°C (without impact)Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire onlypush wire: #14 AWG solid copper wire only |
| Industry Standard(s) | CSA CertifiedListed to UL Standard 20 |
| Package Quantity | 1 |
