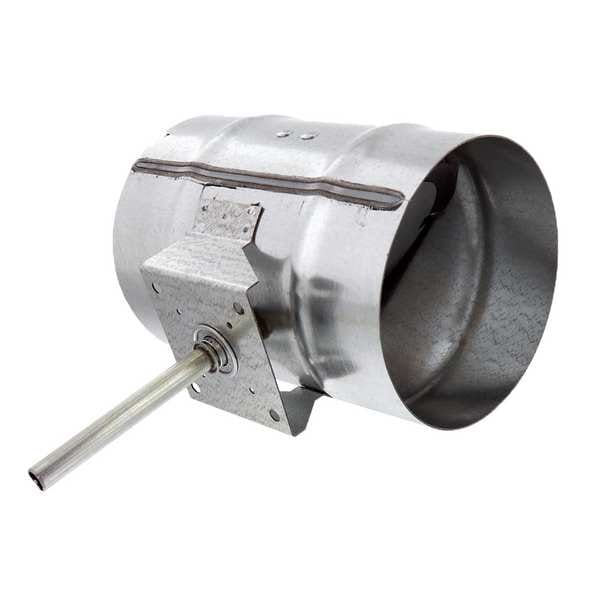

Zone Damper, 6 in dia., 11 in H
| Item | Motorized Damper |
|---|---|
| Includes | Not Applicable |
| Blade Material | Galvanized Steel |
| Type | Round Damper |
| Power Method | Hardwired |
| For Use With | Round Control Damper |
| Height (In.) | 11 |
| Application | Low to Medium Pressure and Velocity Systems |
| Color | Steel |
| Width (In.) | 6 |
| Rotation Angle (Deg.) | 90 |
| Requires | Actuator |
| Dia. (In.) | 6 |
| Frame Material | Steel |
| Blade Type | Not Applicable |
| Depth (In.) | 13 |
| Ambient Temp. Range | 0 Degrees to 250 Degrees F |
| Damper Application | Control |
| Flange Type | Not Applicable |
| Frame Less Flange | Not Applicable |
| Jamb Seal Material | Not Applicable |
| Frame Material Thickness | Not Applicable |
| Minimum Ambient Temperature | 0 deg F |
| Switch Action | Not Applicable |
| Airflow Direction | Not Applicable |
| Electrical Connection | Hardwired |
| Closure Velocity Rating | Not Applicable |
| Fusible Link Temperature | Not Applicable |
| Overall Width | 6 in |
| Blade Seal Material | Not Applicable |
| Maximum Air Velocity | 3,000 fpm |
| ACMA Leakage Class | Not Applicable |
| Number of Panels | Not Applicable |
| Damper Type | Dynamic |
| Rough Opening Shape | Round |
| Overall Height | 11 in |
| Mounting Position | Horizontal, Vertical |
| Rough Opening Width | 6 in |
| Nameplate Voltage | Not Applicable |
| Rough Opening Diameter | 6 in |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Counterbalanced | Not Applicable |
| Flange Width | Not Applicable |
| Free Area | Not Applicable |
| Overall Length | 6 in |
| Overall Diameter | 6 in |
| Rough Opening Length | 6 in |
| For Nominal Duct Diameter | 6 in |
| Maximum Air Pressure | 4 in wc |
| Blade Orientation | Not Applicable |
| Closure Pressure Rating | Not Applicable |
| For Duct Shape | Round |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
