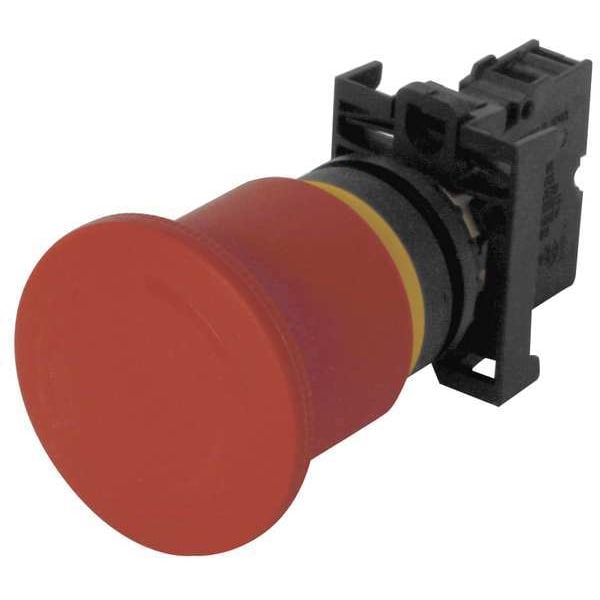

Botón de Parada de Emergencia, Rojo
| Item | Emergency Stop Push Button |
|---|---|
| Size | 22 mm |
| Legend | No Legend |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| Color | Red |
| Material | Plastic |
| Number of Operators | 1 |
| Action | Maintained |
| Type of Operator | 45mm Mushroom Head |
| Contact Rating | 3A @ 24 DC, 6A @ 230V AC |
| Basic Material | Plastic |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| NEMA Contact Rating Designation | AC-15, DC-13 |
| Contact Form | 1NC |
| Terminal Connection | Screw Clamp |
| Head Material | Plastic |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| IP Rating | IP69K, IP67 |
| Bezel | Polycarbonate |
| Product Type | Emergency Stop Push Buttons |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Bezel Material | Nylon |
| Type | Emergency Stop |
| Actuator function | Maintained |
| Environmental rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Product Height | 1 in |
| Actuator | Knob, twist-to-release |
| Compliances | CE Marked |
| Series | M22 |
| Illumination | Non-illuminated |
| Product Width | 2 in |
| Certifications | CCC Marked |
| Product Length/Depth | 2 in |
| Contact configuration | 1 NC |
| Button color | Red |
| Products By Industry | Fabricated Metals |
| Product Name | Eaton M22 modular pushbutton |
| DC Contact Rating | 5 A @ 250 V |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13, 1, 2 |
| Manufacturer Warranty Length | 1 yr |
| Number of Indicator Lights | 0 |
| Resistance Properties | Corrosion Resistant |
| Operator Material | Plastic |
| AC Contact Rating | 6 A @ 230 V |
| Head Color | Red |
| Overall Depth | 2.77 in |
| Operating Temperature - Maximum | 158 deg F |
| Mushroom Head Diameter | 40 mm |
| Mechanical Operating Durability | 1.00 x 10^6 |
| Overall Height | 1 in |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Minimum | -13 deg F |
| Overall Width | 1 in |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Maintained Action Release | Twist |
| Push Button Style | Mushroom Head |
| Package Quantity | 1 |
