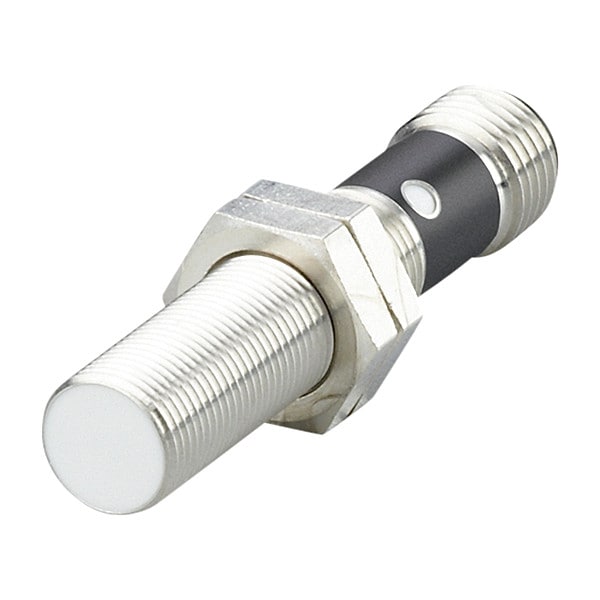

Sensor de proximidad, inductivo, 4mm, NC.
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 20 to 140V AC/DC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO |
| Length | 62 mm |
| Proximity Sensor Diameter | 12 mm |
| Max. Detecting Distance | 4 mm |
| Proximity Sensor Electrical Connection | Male Connector |
| Shielded / Unshielded | Shielded |
| Basic Proximity Sensor Case Material | Metal |
| Proximity Sensor Operating Frequency | 25 Hz AC/200 Hz DC |
| Case Material | Brass White Bronze Coated |
| Operating Temp. Range | -13 to 158 deg F |
| Max. Current Load | 200 mA |
| Description/Special Features | Red LED Output Indication |
| IP Rating | 67 |
| Includes | (2) Lock Nuts |
| Standards | CE Compliance, cUL Listed |
| Length (Straight Wireway) | 62 mm |
| Protection | IP 67 |
| Sensing range [mm] | 4 |
| Reverse polarity protection | no |
| Short-time current rating of switching output [mA] | 900; (20 ms / 0,5 Hz) |
| Hysteresis [% of Sr] | 3...15 |
| EMC | EN 60947-5-2 EN 55011 class B |
| Permanent current rating of switching output DC [mA] | 200 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
| Overload protection | no |
| Permanent current rating of switching output AC [mA] | 200 |
| MTTF [years] | 999 |
| UL approval | Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191 |
| Operating distance [mm] | 0...3.25 |
| Protection class | I |
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting |
| Materials | brass white bronze coated; PBT |
| Thread designation | M12 x 1 |
| Dimensions [mm] | M12 x 1 |
| Short-circuit proof | no |
| Max. leakage current [mA] | 0.8 |
| Switching frequency DC [Hz] | 200 |
| Mounting | flush mountable |
| Special feature | Increased sensing range |
| Output function | normally open |
| Housing | threaded type |
| Frequency AC [Hz] | 47...63 |
| Switching frequency AC [Hz] | 25 |
| Increased sensing range | yes |
| Display | switching status 1 x LED, red |
| Connection | Connector: 1 x 1/2"; coding: C |
| Items supplied | 2 (lock nuts) |
| Max. voltage drop switching output AC [V] | 5 |
| Ambient temperature [°C] | -25...70 |
| Operating voltage [V] | 20...140 AC / 10...140 DC |
| Max. voltage drop switching output DC [V] | 5 |
| Minimum load current [mA] | 5 |
| Ambient temperature [°C] | -25...70 |
| Package Quantity | 1 |
