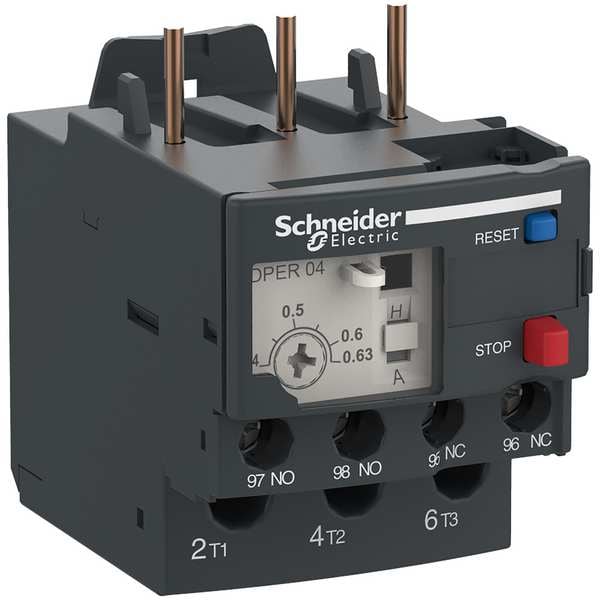

Rele de sobrecarga, IEC, térmico, automático/manual.
| Item | IEC Overload Relay |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Use With - Contactors and Starters | Contactor DPE09-38 |
| Overload Relay Current Range | 0.4 to 0.63 A |
| NEMA Size | Not Applicable |
| Width | 45 mm |
| Trip Class - Overload | 10 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | Class 10, Easy TeSys DPER |
| Reset Type - Relay | Manual |
| Height | 66 mm |
| Sensing Method | Thermal |
| Depth | 70 mm |
| Features | 400 Hz Power Circuit IEC 60947-4-1, 5 A Signalling Circuit, 690 V AC |
| Body Depth - Relay | 2.76 in |
| Body Height - Relay | 2.6 in |
| Trip Class | 10 |
| Kit Required for Retrofit Mtg. | LAD9R1 |
| Overall Height - Relay | 2.6 in |
| Separate Mounting | Yes, Additional Items Needed |
| Standards | cUL, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1 |
| Body Width - Relay | 1.77 in |
| Overall Height | 2.6 in |
| Thermal Protection Adjustment Range | 0.4 to 0.63 A |
| Protective Treatment | TH IEC 60068 |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Temperature Compensation | -20-60°C |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Protection Type | BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit |
| Network Type | DC || AC |
| Vibration Resistance | 6 gn on plate IEC 60068-2-6 |
| [Ue] Rated Operational Voltage | 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1 |
| Product Name | Easy TeSys DPER |
| Product Certifications | cUL |
| Network Frequency | 0 to 400 Hz |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Relay Application | overload protection |
| Mounting Support | separate, with specific accessories || under contactor |
| Range | Easy TeSys |
| Permissible Current | 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals |
| [Ith] Conventional Free Air Thermal Current | 5 A (signalling circuit) |
| [Ui] Rated Insulation Voltage | power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1 |
| Surge Withstand | 6 kV IEC 60801-5 |
| Device Short Name | DPER |
| Control Type | Red push-button stop || Blue push-button reset |
| Product Compatibility | contactor DPE09-38 |
| Thermal Overload Class | class 10 IEC 60947-4-1 |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end |
| Product Or Component Type | relay |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -60-70°C |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-7 |
| Body Width | 1.77 in |
| Minimum Operating Temperature | -4 deg F |
| IP Rating | IP20 |
| Body Height | 2.6 in |
| Maximum Voltage Rating | 690 V AC |
| Overload Protection Type | Thermal |
| Relay Style | IEC |
| Reset Type | Manual, Auto |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible with Series | Easy TeSys |
| Minimum Overload Relay Current Setting | 0.4 A |
| Auxiliary Contact Form | 1NO/1NC |
| Body Depth | 2.76 in |
| Maximum Operating Temperature | 140 deg F |
| Phase | Three |
| Mounting Style | Separately Mounted |
| Maximum Overload Relay Current Setting | 0.63 A |
| Package Quantity | 1 |
