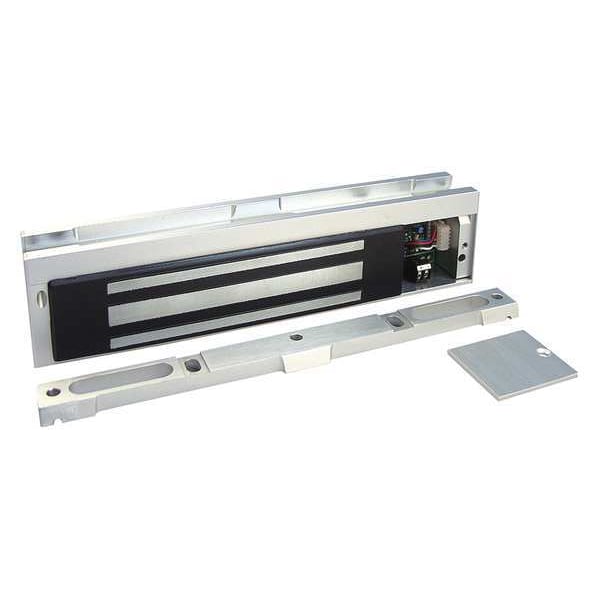

Electromagnetic Lock, M38, Traffic Control
| Item | Electromagnetic Lock |
|---|---|
| Finish | Brushed |
| Type | Surface Mount |
| Input Voltage | 12/24V DC |
| For Use With | High Security for Traffic Control Doors |
| Material | Steel |
| Includes | Mounting Hardware |
| Opening Action | Instant Release |
| Options Included | Wire Access Chanber with Plug-In Connectors |
| Series | M38 |
| Features | Automatic Dual Voltage, Internal Wire Access Chamber, Tamper-Resistant |
| Amp Draw @ 24V | 170mA |
| Lock Body Width (In.) | 2-1/2 |
| Release Delay | Instantaneous |
| Amp Draw @ 12V | 350mA |
| Package Quantity | 1 |
| Armature Length (In.) | 10-1/2 |
| Strike Plate Depth (In.) | 1/2 |
| Projection from Wall (In.) | 2-1/4 |
| Holding Force (Lb.) | 600 |
| Standards | ANSI/BHMA A156.23, ANSI/UL 294, CAN/ULC-S533, CAN4-S104, CE:EN 50081-1(92), CSA-C22.2 No.205 Listed, CSFM, E18501-500 Compliant, EN 61000-6-2(99) Approved |
| Armature Width (In.) | 2-1/2 |
| Lock Body Length (In.) | 10-1/2 |
| Armature Depth (In.) | 1-11/16 |
| Strike Plate Width (In.) | 1-5/8 |
| Strike Plate Length (In.) | 6-1/4 |
| Mfr. Series | M38 |
| Lock Body Depth (In.) | 1-11/16 |
| Total Projection (In.) | 1-11/16 |
| Armature Length | 10-1/2 in |
| Armature Width | 2-1/2 in |
| Lock Body Width | 2-1/2 in |
| Lock Body Depth | 1-11/16 in |
| Strike Plate Width | 1-5/8 in |
| Projection | 2-1/4 in |
| Includes Hardware | Hardware Included |
| Current @ 12V | 350 mA |
| Strike Plate Height | 6-1/4 in |
| Compatible Series | DC, TJ |
| Current @ 24V | 170 mA |
| Overall Width | 1-11/16 in |
| Compatible Manufacturer Model Number | DC-38SP, TJ-38CL |
| UL Fire Rating | UL10C |
| Overall Length | 10-1/2 in |
| Overall Height | 2-1/2 in |
| Holding Force - Maximum | 600 lb |
| Country of Origin (subject to change) | United States |
