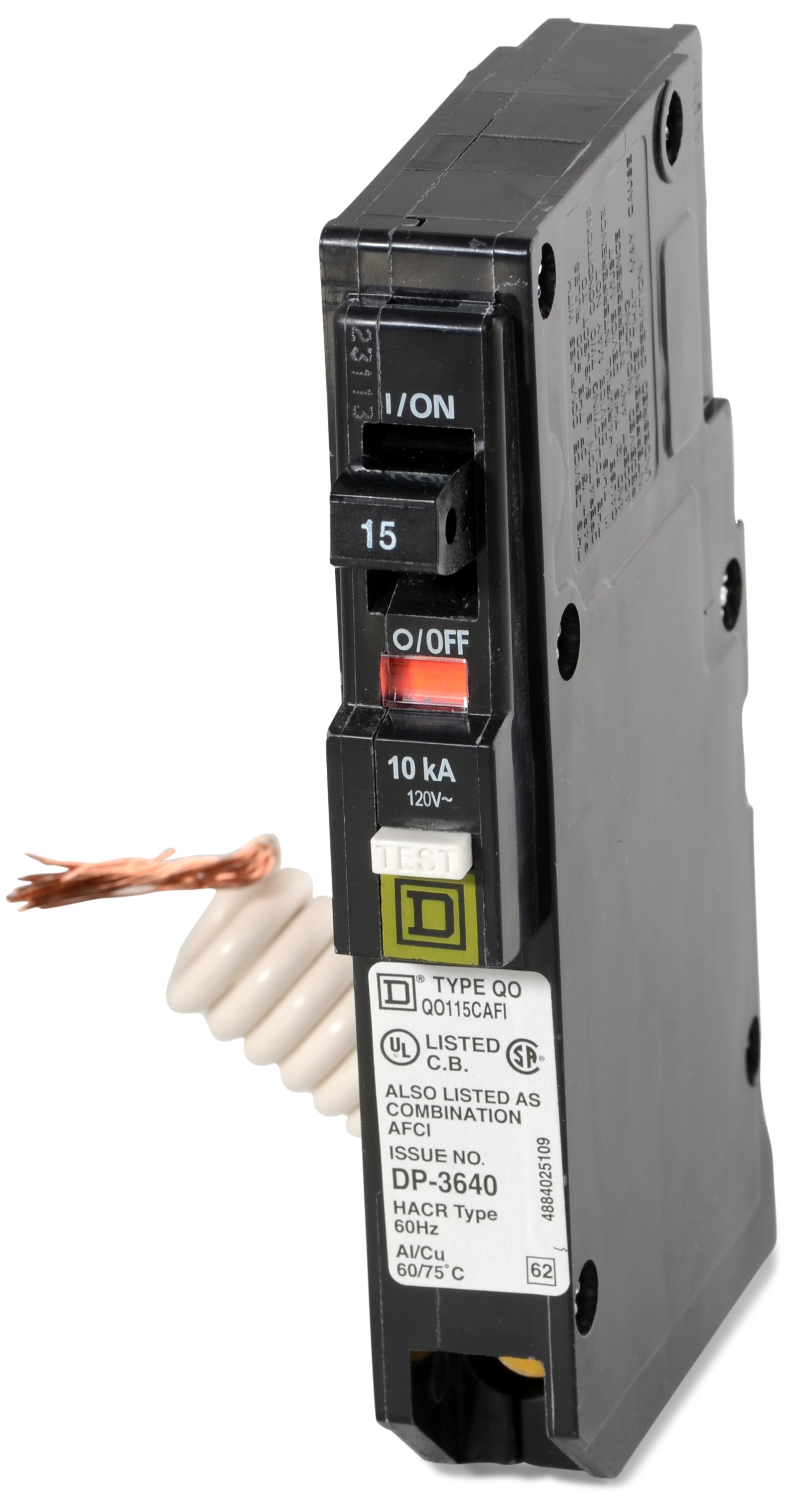

The Square D QO115CAFIC is a 1 Pole molded case combination arc fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QO115CAFIC has a plug-in mounting type and it is used for distribution panels.
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Connection Type | Pressure Plate |
| Wire Gauge | AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum |
| For Use With | Distribution Panels |
| Standards | RoHS, REACh, HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | CAFCI |
| Mpn | QO115CAFIC |
| Gtin | 785901610441 |
